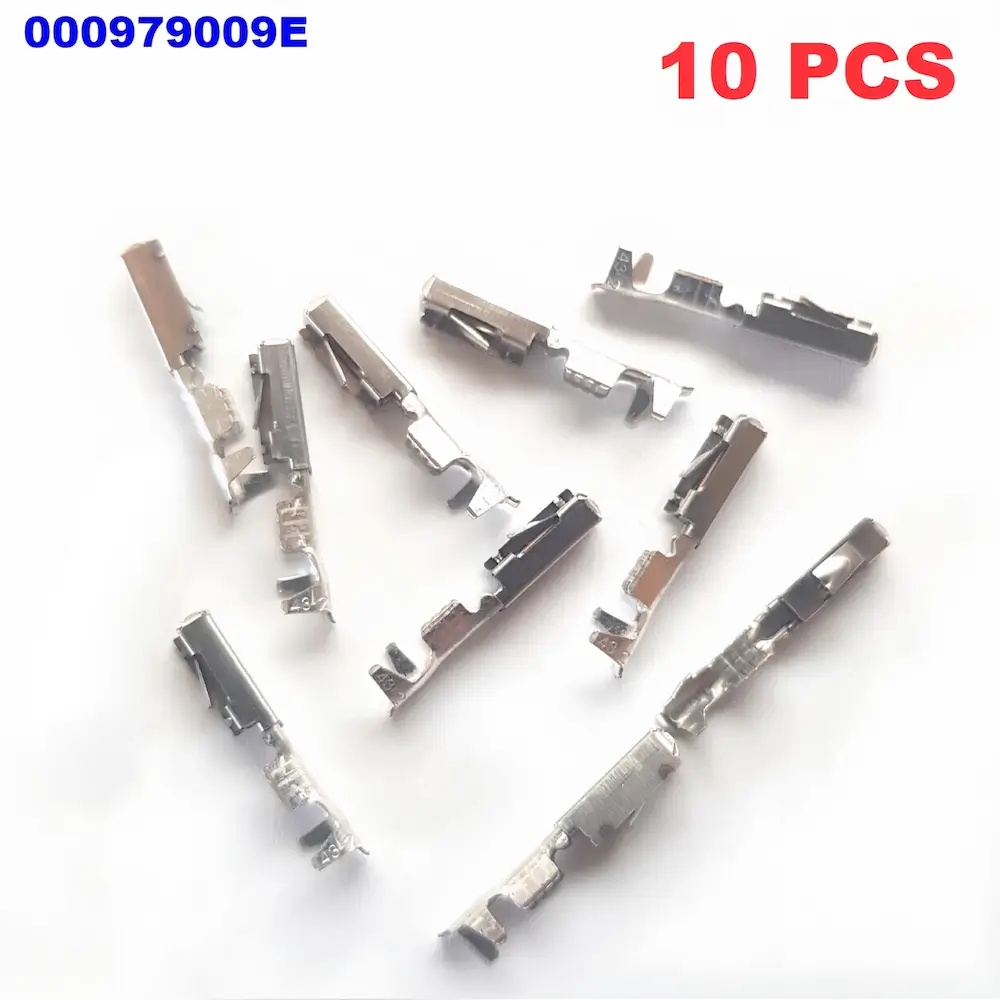

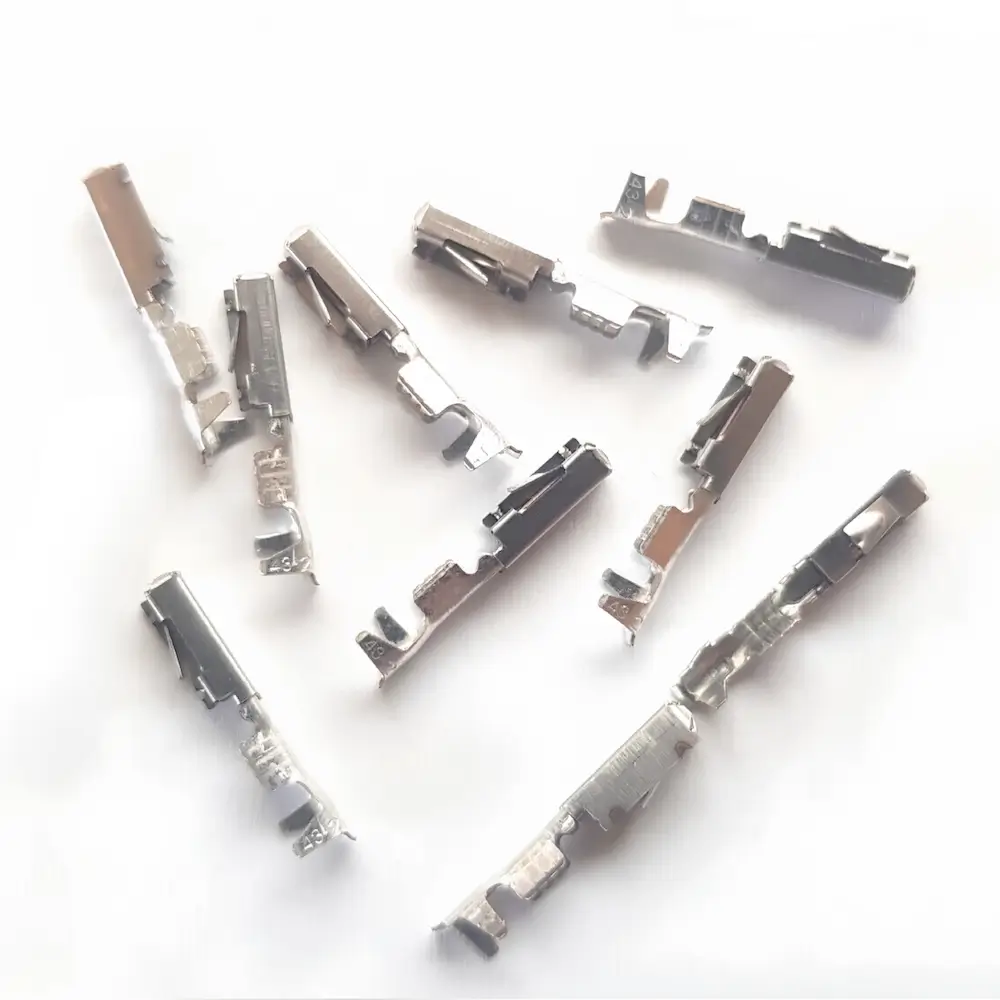

Part no. 000979009E TE Connectivity 965906-1 Crimp Terminal for VAG BCM J519 Connector Part no. 000979009E
Original price was: ₹500.00.₹299.00Current price is: ₹299.00. Pack of 10
TE Connectivity 965906-1 – Genuine MQS female receptacle terminal. Designed for 18-20 AWG (0.5-0.75 mm²) wire. Used in VAG BCM J519 73-pin and 46-pin connectors. Pack of 10.
- Part Number: 965906-1 / 000979009E
- Type: Receptacle (Female)
- Wire Size: 18-20 AWG (0.5-0.75 mm²)
- Current Rating: 7.5A
- Application: BCM J519 T73a, T73b, T73c, T46b connectors
| Weight | 0.05 kg |
|---|---|
| Dimensions | 18 × 10 × 1 cm |
 Brand | Durvient |
 Manufacturer | Volkswagen |
 Quantity | Pack of 10 |
 Model/Part No. | 5-965906-1 (Female) |
 Return Policy | Not Returnable |
 Warranty | No Warranty |
In stock
Female Crimp Terminal for VAG BCM J519 Connector Pins
This genuine TE Connectivity receptacle terminal (part number 965906-1, also known as 000979009E) is used in 73-pin and 46-pin connectors on the VAG BCM J519 module. It is suitable for wiring lighting equipment and other electrical circuits in MQB platform vehicles.
Key Features:
- Application: Used in BCM J519 connectors including T73a, T73b, T73c, and T46b.
- Terminal Type: Female receptacle with 4-point contact design for reliable connection.
- Wire Size: Designed for 18-20 AWG (0.5-0.75 mm²) wire.
- Current Rating: Up to 7.5A at 80°C.
- Temperature Range: -40°C to 120°C.

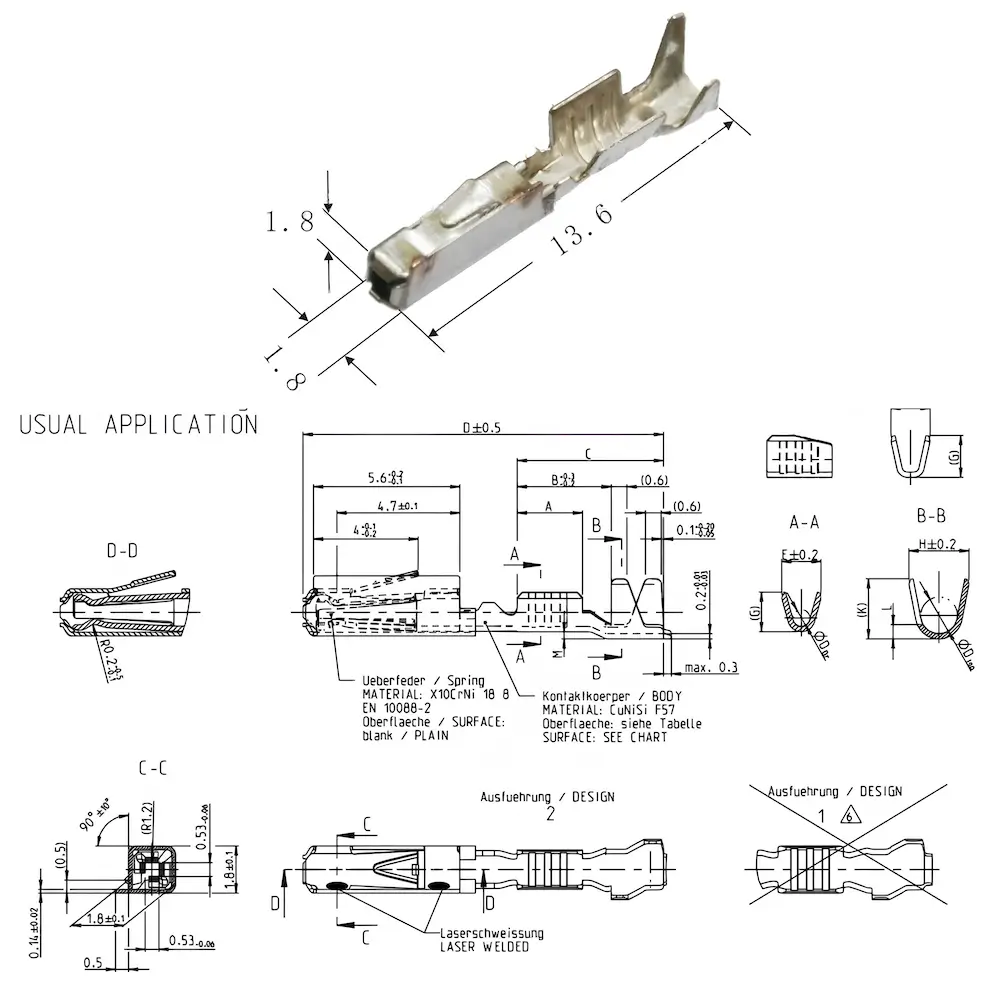

Technical Specifications
| Specification | Details |
|---|---|
| Part Number | 965906-1 |
| Alternative Part Number | 000979009E |
| Type | Receptacle (Female) Terminal |
| Series | MQS (Micro Quadlock System) |
| Wire Size (AWG) | 18-20 AWG |
| Wire Size (mm²) | 0.5-0.75 mm² |
| Current Rating | 7.5A at 80°C |
| Contact Plating | Tin |
| Contact Material | CuNiSi (Copper Nickel Silicon) |
| Operating Temperature | -40°C to 120°C |
| Pack Size | 10 pieces |
Compatible VAG Connectors
| Connector | Description |
|---|---|
| T73a | 73-pin Connector A on BCM J519 |
| T73b | 73-pin Connector B on BCM J519 |
| T73c | 73-pin Connector C on BCM J519 |
| T46b | 46-pin Connector B on BCM |
Product FAQ
Where is this terminal used in the BCM J519 module?
This terminal is used on the 73-pin connectors (T73a, T73b, T73c) and 46-pin connector (T46b) of the BCM J519 module.
What is the correct wire size for this terminal?
The terminal is designed for 18-20 AWG wire, which corresponds to 0.5-0.75 mm².
What is the current rating for this terminal?
The rated current is up to 7.5A at 80°C.
How many terminals are included?
This listing includes a pack of 10 terminals.
Additional Information
- Packaging: We use eco-friendly and tamper-proof packaging to ensure your product arrives safely.
- Customer Service: For any queries or support, please visit our Contact Us page.
- FAQ Section: Have questions? Check out our FAQ page for more information.
Product Tags
965906-1, 000979009E, TE Connectivity terminal, BCM J519, T73a connector, T73b connector, T73c connector, T46b connector, VAG wiring terminal, MQS terminal, VW Audi Skoda Seat terminal
