TE Connectivity 1534334-1 Crimp Terminal for VAG BCM J519 T73A T73C Connector Pins
Price range: ₹279.00 through ₹499.00 Pack
TE Connectivity 1534334-1 – Genuine AMP MCP 1.5K female receptacle terminal. Designed for 1.5 mm² wire. Used in VAG BCM J519 73-pin connectors (pins 64, 65, 67–72) for lighting circuits.
- Part Number: 1534334-1
- Type: Receptacle (Female)
- Wire Size: 1.5 mm² (15-17 AWG)
- Current Rating: 12–13A
- Application: BCM J519 T73a and T73c connectors
| Weight | 0.05 kg |
|---|---|
| Dimensions | 18 × 10 × 1 cm |
 Brand | Durvient |
 Compatible With | MQB Cars |
 Model/Part No. | N 906 844 05, TE-1534334-1 (Female) |
 Quantity | Pack of 4, Pack of 8 |
 Return Policy | Not Returnable |
 Warranty | No Warranty |
Female Crimp Terminal for VAG BCM J519 Connector Pins
This TE Connectivity receptacle terminal (part number 1534334-1, N 906 844 05) is a direct-fit contact for the 73-pin connectors on the VAG BCM J519 module. It is commonly used for wiring lighting equipment and other electrical loads in MQB platform vehicles.
Key Features:
- Application: Used in BCM J519 73-pin connectors (T73a and T73c).
- Common Pin Positions: Pins 64, 65, and 67~72 on Connector A and C are typical lighting circuits.
- Terminal Type: Female receptacle.
- Wire Size: Designed for 1.5 mm² (14~18 AWG) wire.
- Current Rating: 12–13A.
- Temperature Range: -40°C to 130°C.

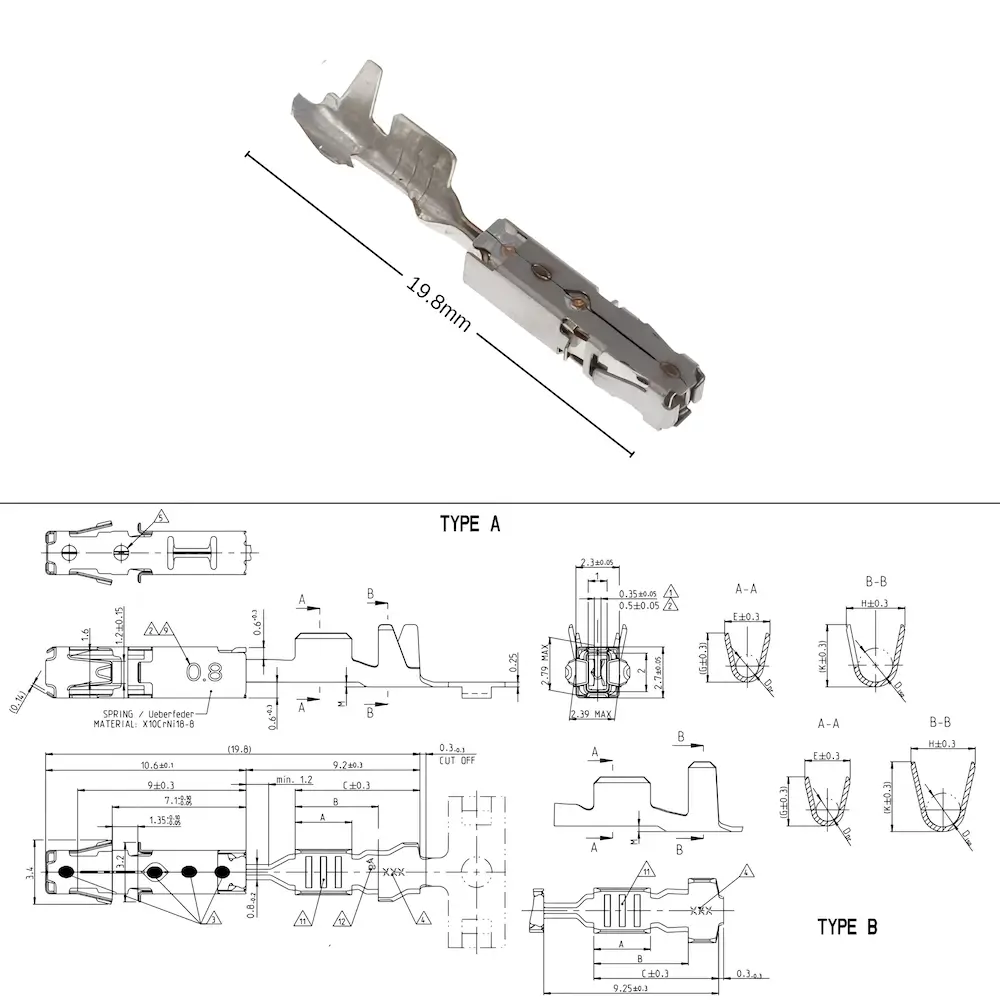

Technical Specifications
| Specification | Details |
|---|---|
| Part Number | 1534334-1, N 906 844 05 |
| Type | Receptacle (Female) Terminal |
| Series | AMP MCP 1.5K |
| Wire Size (mm²) | 1.5 mm² |
| Wire Size (AWG) | 15–17 AWG |
| Current Rating | 12–13A |
| Contact Plating | Tin |
| Mating Tab Width | 1.5–1.6 mm |
| Operating Temperature | -40°C to 130°C |
| Primary Locking Feature | Locking Lance |
Product FAQ
Where is this terminal used in the BCM J519 module?
This terminal is used on the 73-pin Connector A (T73a) and Connector C (T73c) of the J519 BCM. Common pin positions for lighting include 64, 65, and 67~72.
Which vehicles use the MQB platform BCM?
This terminal is compatible with MQB platform vehicles including VW Virtus, Taigun, and Skoda Slavia, Kushaq, Kylaq, and Octavia MK3/MK3.5.
What is the correct wire size for this terminal?
The terminal is designed for 1.5 mm² wire, which corresponds to 14~18 AWG.
What is the current rating for this terminal?
The rated current is typically 12~13A.
Additional Information
- Packaging: We use eco-friendly and tamper-proof packaging to ensure your product arrives safely.
- Customer Service: For any queries or support, please visit our Contact Us page.
- FAQ Section: Have questions? Check out our FAQ page for more information.
Product Tags
1534334-1, N 906 844 05, TE Connectivity terminal, BCM J519, T73a connector, T73c connector, VAG lighting terminal, MQB platform, AMP MCP 1.5K, virtus, slavia, kushaq, kylaq, taigun, footwell connector terminal, puddle lamp connector terminal
