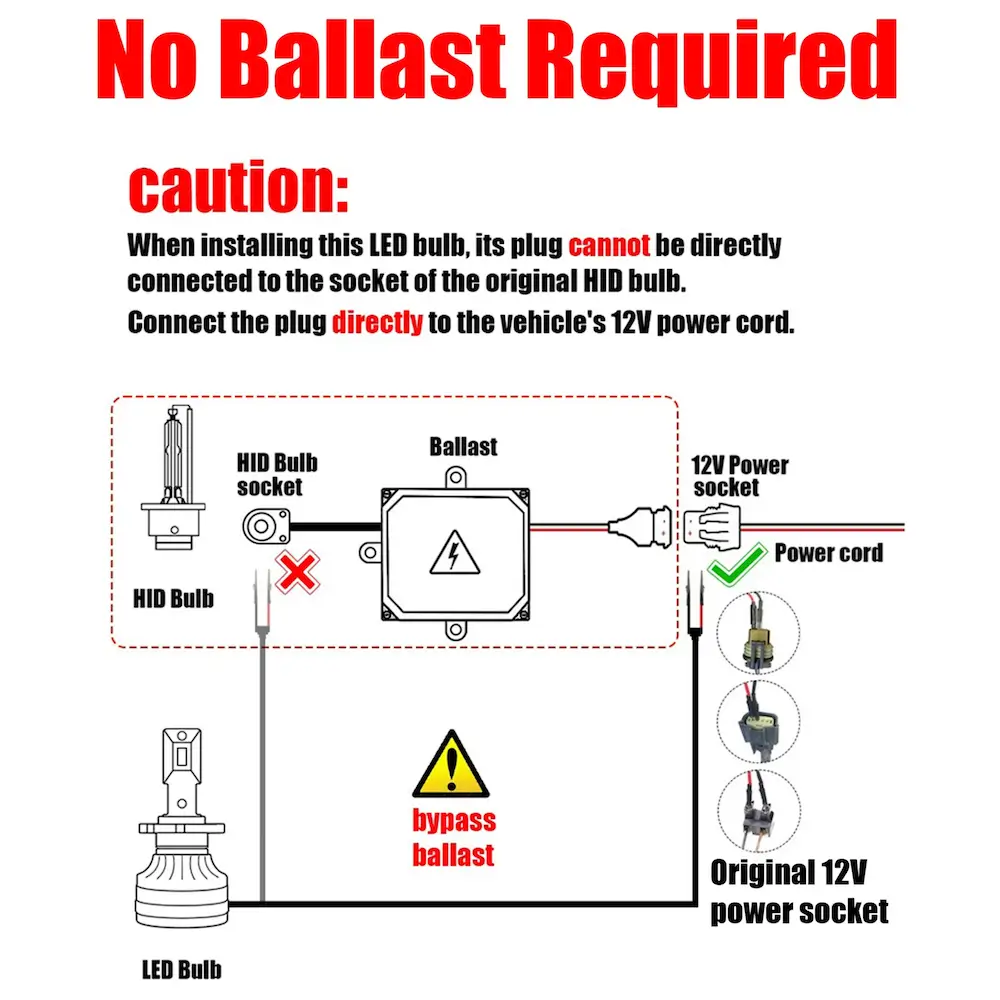

D-Series HID Installation - No ballast Required

Click to enlarge

150W HID to LED D-Series Headlight Kit - Warm White 4300K

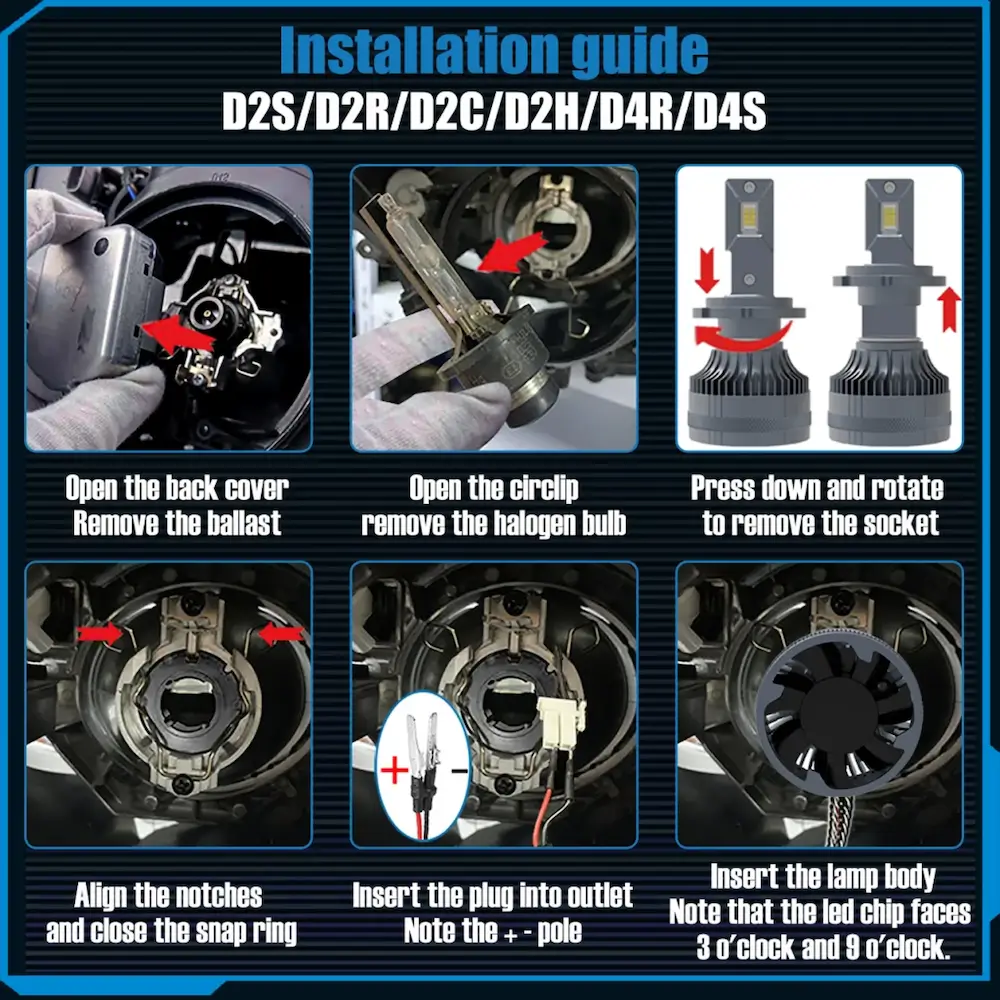

D Series d1s d2s d3s d4s d5s d8s installation guide

150W HID to LED D-Series Headlight Kit - Warm White 4300K - Image 4

150W HID to LED D-Series Headlight Kit - Warm White 4300K - Image 5

150W HID to LED D-Series Headlight Kit - Warm White 4300K - Image 6

150W HID to LED D-Series Headlight Kit - Warm White 4300K - Image 7

150W HID to LED D-Series Headlight Kit – Warm White 4300K

Original price was: ₹7,000.00.Current price is: ₹5,499.00.Pair

150W D-Series HID to LED conversion – CSP 4070 LEDs in 4300K Warm White or 6000K Pure White for OEM HID projector housings.

- D-Series fit: Suits D1S/D1H, D2S/D2H, D3S/D3R, D4S/D4R, D5S, D8S housings.
- Direct wire: Red (+) and black (-) wires connect to the headlight power feed; ballast must be bypassed.
- High output: 150W per pair (75W each) with focused beam pattern.
- Cooling: Dual copper tubes and turbo fan for thermal control.

Weight	0.3 kg
Dimensions	18 × 15 × 5 cm
Brand	Durvient
Color	Warm White
Color Temperature	4300K
Compatible With	HID Bulb Replacement
Wattage	150
Socket/Connector	D1S , D2S/D2R , D3S/D8S , D4S/D4R , D5S
Quantity	Set of 2 (1 Pair)
Warranty	18 Months
Return Policy	Exchange Only

Warranty
18 Months
Return Policy
Exchange Only

Color

Warm White

Socket/Connector

Check your pin code

Add to wishlist

8 People watching this product now!

Description

150W HID to LED D-Series HID Conversion Kit – Warm White LED

Super Bright Headlight Fog Light LED - Blazing brightness, available in white or warm white colors

Convert your factory D-Series HID setup to high-output LEDs with this 150W D-Series HID to LED Kit. CSP 4070 LEDs deliver strong, focused light while keeping a compact form factor suitable for OEM projector housings.

Choose 4300K Warm White for better performance in bad weather or 6000K Pure White for a clean, modern look. Heat is managed by dual copper tubes and a high-speed turbo fan for reliable, long-term use.

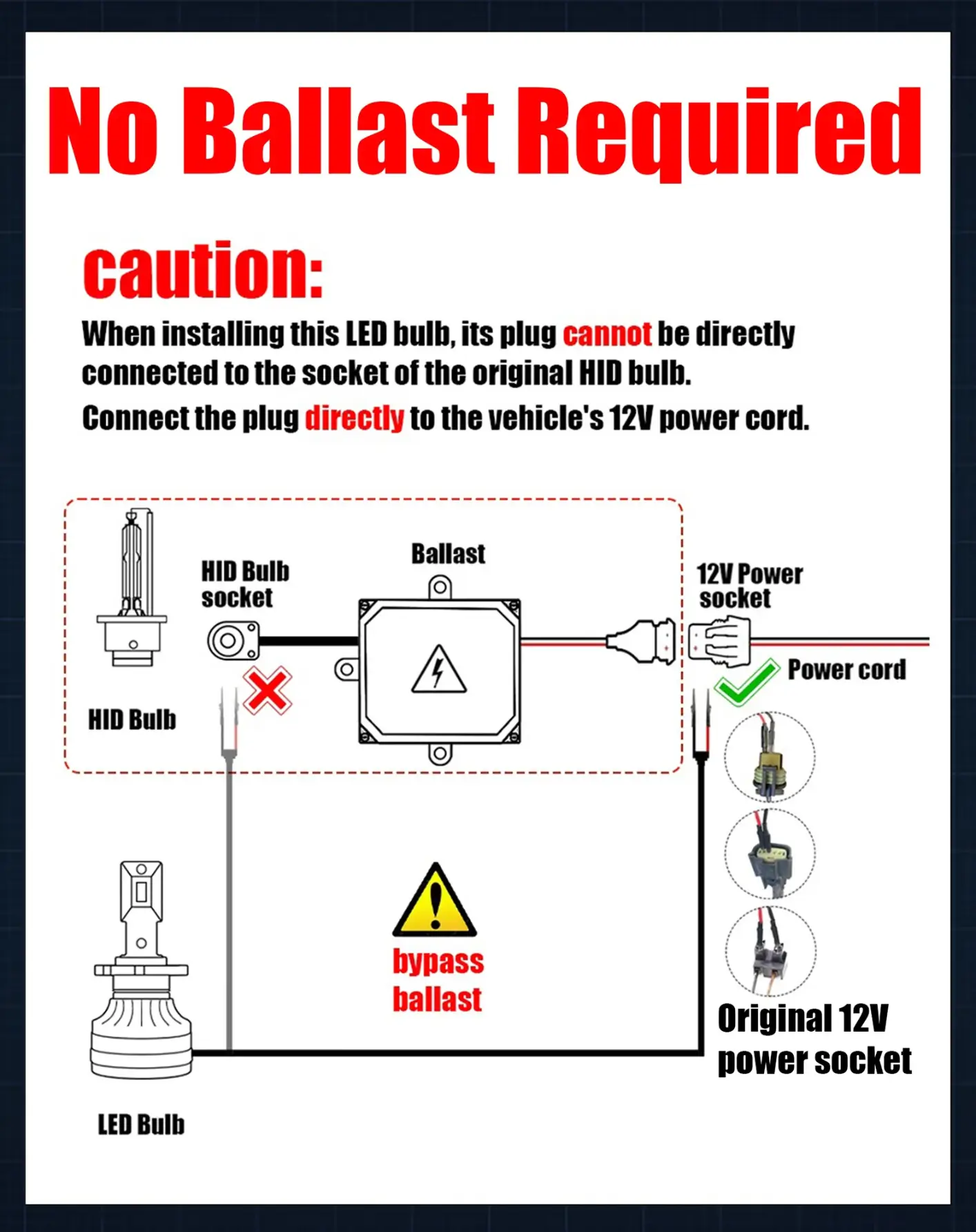

⚠️ HID to LED Conversion – D-Series Notice

This kit is a D-Series LED replacement for factory HID bulbs and does not plug into the OEM HID ballast.

It does not include the D-Series block connector that normally plugs into the ballast.
The LED runs on two direct power wires only:
- Red wire: Positive (+)
- Black wire: Ground / Negative (–)
These wires must be connected to the vehicle’s headlight power supply before the ballast.
The factory HID ballast must be bypassed or disconnected for proper operation.

Watch this video to know more on how to connect the wires:

Key Features:

D-Series conversion: Designed for D1S/D1H, D2S/D2H, D3S/D3R, D4S/D4R, D5S, D8S OEM HID housings.
High brightness: 150W per pair (75W per bulb) with 15-core CSP 4070 chips for a strong, focused beam.
Color options: Available exclusively in 4300K Warm White
Canbus support: Built-in decoder helps reduce flicker and check-light warnings in most vehicles.
Efficient cooling: Dual copper tubes plus a turbo fan to move heat away from the LEDs.

Technical Specifications

Specification	Details
Socket Compatibility	D1S/D1H, D2S/D2H, D3S/D3R, D4S/D4R, D5S, D8S (direct-wire HID to LED conversion)
LED Type	2 x 15-core CSP 4070 (55 mil) chips
Wattage	150W per pair (75W per bulb)
Color Temperature	4300K (Warm White)
Heat Management	Dual copper tubes + turbo fan
Voltage	11–15V DC (ballast must be bypassed or disconnected)

Bulb Cross Compatibility Reference Guide

Bulb	Equivalent To
D-Series HID	D1S/D1H, D2S/D2H, D3S/D3R, D4S/D4R, D5S, D8S (direct-wire HID to LED conversion, ballast bypass required)

Product FAQ

Does this plug into my factory HID ballast?

No. This kit is direct-wire only. The red (+) and black (–) wires must be connected to the headlight power feed, and the OEM HID ballast must be bypassed or disconnected.

Which D-Series bulbs does this replace?

It is intended for D1S/D1H, D2S/D2H, D3S/D3R, D4S/D4R, D5S, and D8S projector housings where there is space for the LED heat sink and fan.

Will my car show bulb errors after conversion?

The built-in Canbus support helps reduce errors and flicker, but some cars may still require additional resistors or decoders depending on how the original HID system is monitored.

Which color temperature should I choose?

4300K Warm White is closer to OEM HID color and works better in clear as well as poor weather conditions.

Do I need to remove factory fitted ballast?

No. You can leave the ballast disconnected but DO NOT remove as the ballast may be contributing in weatherproofing the headlight assembly.

Additional Information

Packaging: We use eco-friendly and tamper-proof packaging to ensure your product arrives safely.
Customer Service: For any queries or support, please visit our Contact Us page.
FAQ Section: Have questions? Check out our FAQ page for more information on our products and services.

Product Tags

150W LED headlight, CSP 4070 LED, Canbus error-free headlight, 4300K warm white LED, D1S, D1R, D2S, D2R, D3S, D3R, D4S, D4R, D5S, D8S, D1H, D2H, 4300k hid

Reviews (0)

Reviews

There are no reviews yet

Be the first to review “150W HID to LED D-Series Headlight Kit – Warm White 4300K”

This site uses Akismet to reduce spam. Learn how your comment data is processed.

Q & A

Ask a question

150W HID to LED D-Series Headlight Kit - Warm White 4300K

Your question

* Question is required

Name

* Name is required

* Email is required

There are no questions yet

SKU: R2-4070-HID-Parent Categories: Headlights, Automotive Tags: automotive, D1H, D1S, D2H, D2S, D3S, D4S, D5S, D8S, Discharge Bulb, headlight, HID
Brand: Durvient

HID Socket	Voltage	Color Temp	Note
D1S	90V	6000°K	Output from HID Ballast
D2S	90V	6000°K	Output from HID Ballast
D3S/D8S	12V	6000°K	D3S and D8S are Cross Compatible, Output from HID Ballast
D4S/D4R	48V	6000°K	Works with stock HID Ballast
D5S	12	6000°K	Works with stock HID Ballast
