XY-BT-Mini Bluetooth 4.1 Audio Decoder Board (Micro-USB 3.7V-5V)

Compact Wireless Bluetooth 4.1 Stereo Audio Receiver Module with 3.5mm AUX & Micro-USB 5V Input

7 sold in the last 24 hours
Rs. 299.00 Rs. 349.00

Inclusive of all taxes. Extra 2% off on UPI (Auto applied)

1 5
Quantity

Secure payments

Check delivery & Partial COD Availibility

Enter your PIN code to see the earliest available delivery estimate.

Estimated Delivery Date

Express shipping available on checkout, partial COD may be available to eligible customers.

Delivery dates are based on past performance

Daily Dispatch
Trusted Brand
Technical Support

Product Highlights

  • Lossless Audio Streaming: Decodes FLAC, WAV, APE, and MP3 audio streams for high-fidelity sound quality.
  • Bluetooth 4.1 Receiver: Delivers up to 15 meters of stable wireless transmission with automatic reconnection.
  • Dual Power Support: Powered via standard Micro-USB 5V port or 3.7V lithium battery solder pads.
  • Ultra-Compact 30x30mm Footprint: Integrates easily into car stereo AUX lines, portable speakers, and home audio amps.

Got questions?

FREQUENTLY ASKED QUESTIONS

Quick answers to common questions about fitment, installation, and product use.

How do I connect this board to my car stereo AUX?
Connect a 3.5mm audio cable from the board's headphone jack into your car's AUX port and power the board using a 5V USB car charger.
Does it have an automatic reconnect function?
Yes, once paired, it automatically reconnects to your smartphone when powered on.
Can it be powered by a 3.7V 18650 lithium battery?
Yes, solder the battery leads directly to the BAT+ and BAT- solder pads.

Product Details

Description

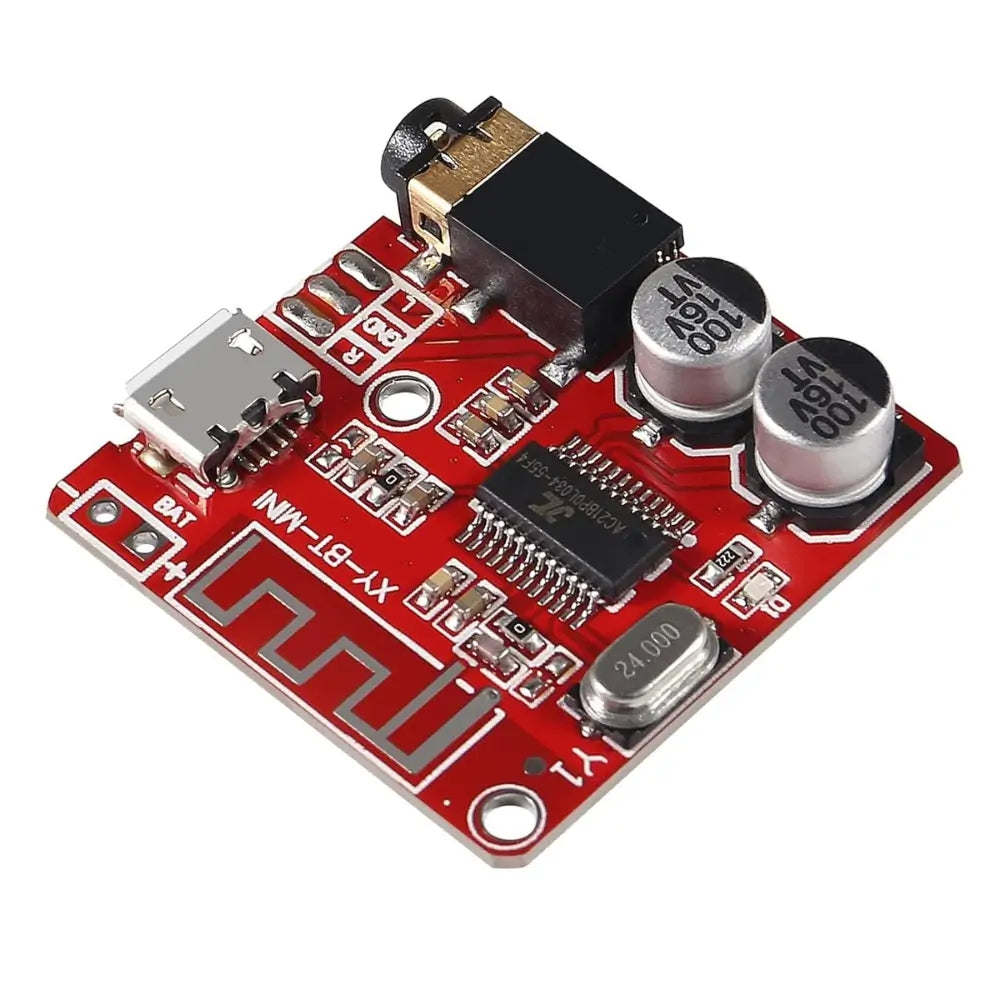

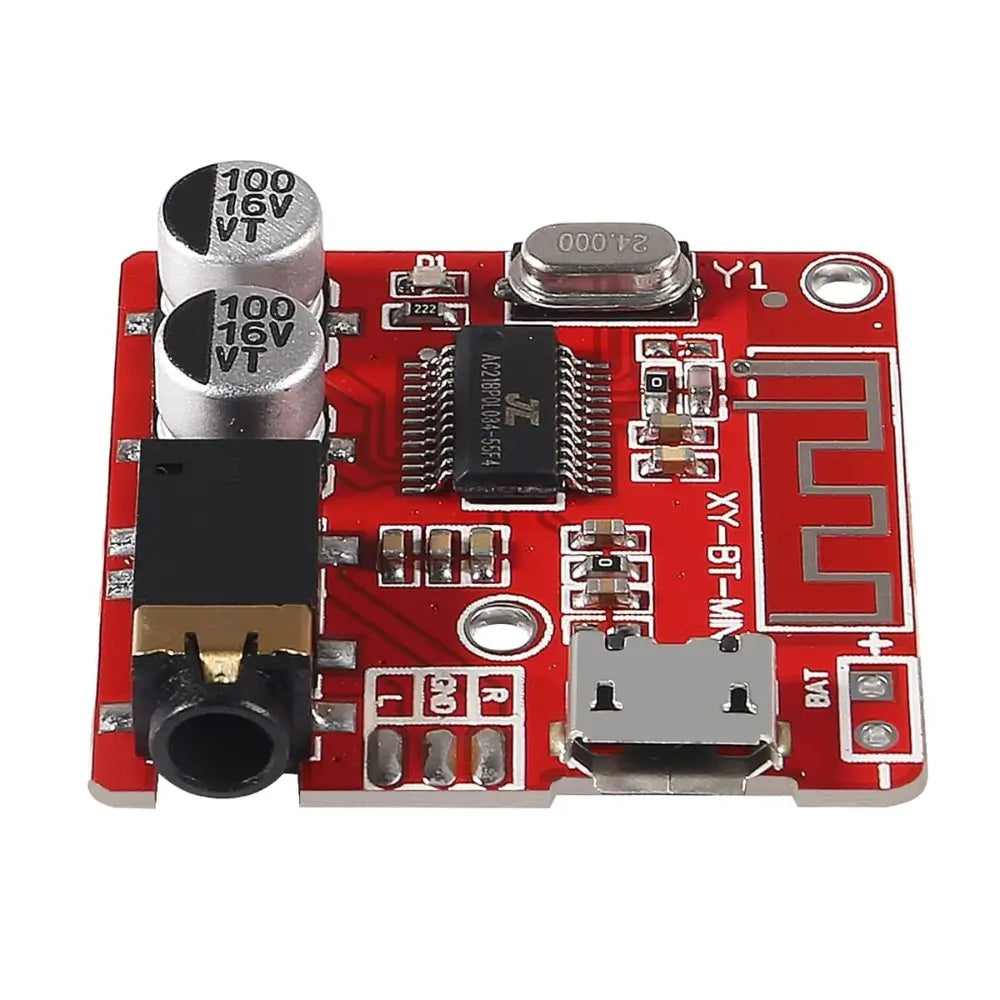

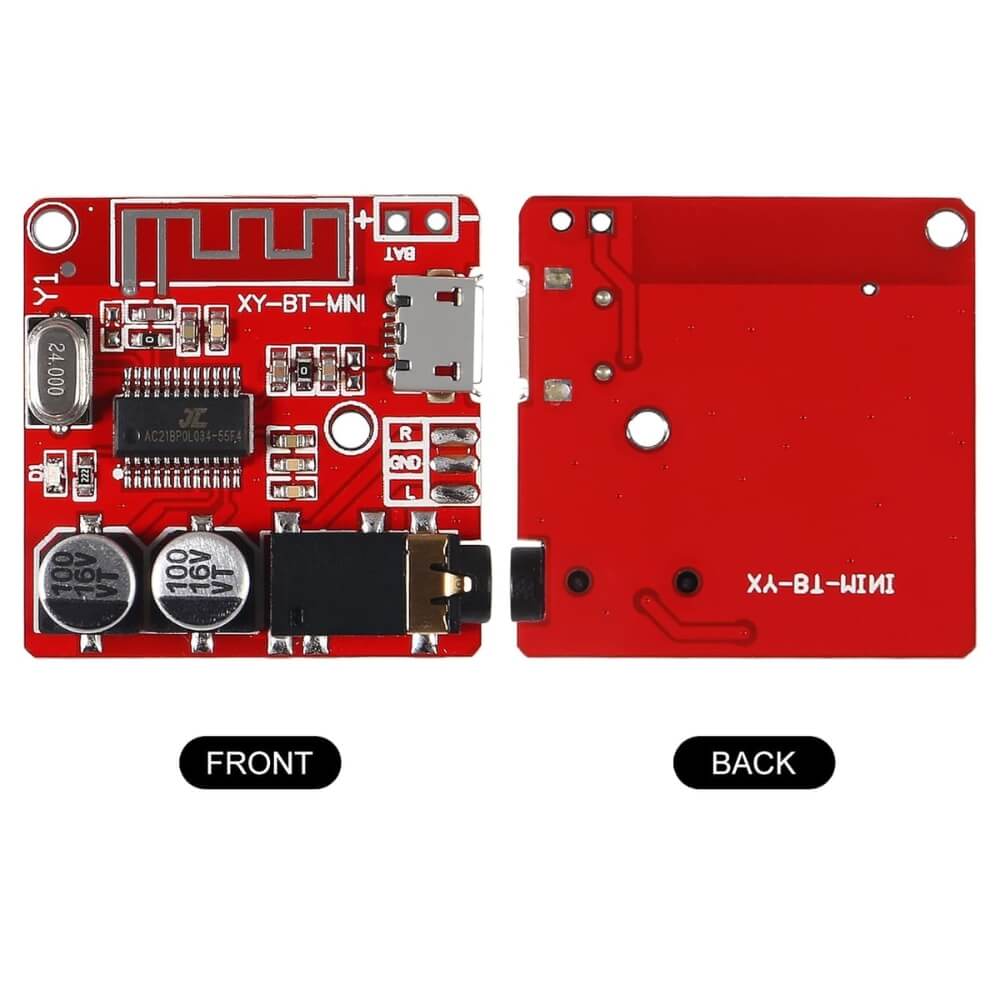

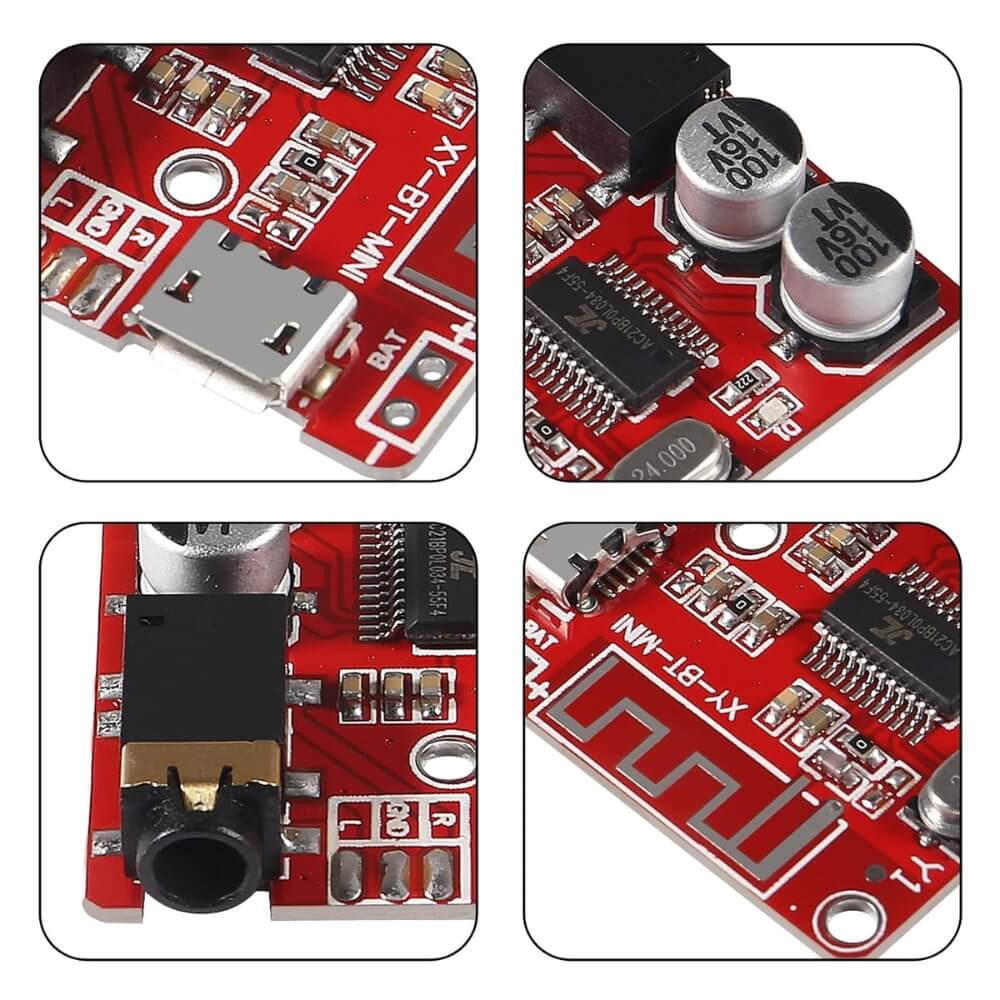

XY-BT-Mini Bluetooth 4.1 Audio Decoder Board (Micro-USB 3.7V-5V)

Add wireless Bluetooth audio streaming to vintage car stereos, home amplifiers, and DIY speakers with the XY-BT-Mini Bluetooth 4.1 Audio Decoder Board. Supporting lossless audio formats including WAV, APE, FLAC, and MP3, this compact board streams clean audio up to 15 meters.

Dual Power Options: Micro-USB 5V or 3.7V Lithium Battery

Power the board using a standard 5V Micro-USB cable or solder a 3.7V lithium battery directly to the onboard power pads for portable audio projects. Output stereo audio through the onboard 3.5mm headphone jack or solder points directly to amplifier inputs.

Key Features

  • Lossless Audio Decoding: Supports WAV, APE, FLAC, and MP3 audio stream decoding.
  • Bluetooth 4.1 Wireless Link: Stable wireless audio transmission up to 15 meters line-of-sight.
  • Dual Power Input: Operates from 5V Micro-USB or 3.7V lithium-ion battery terminals.

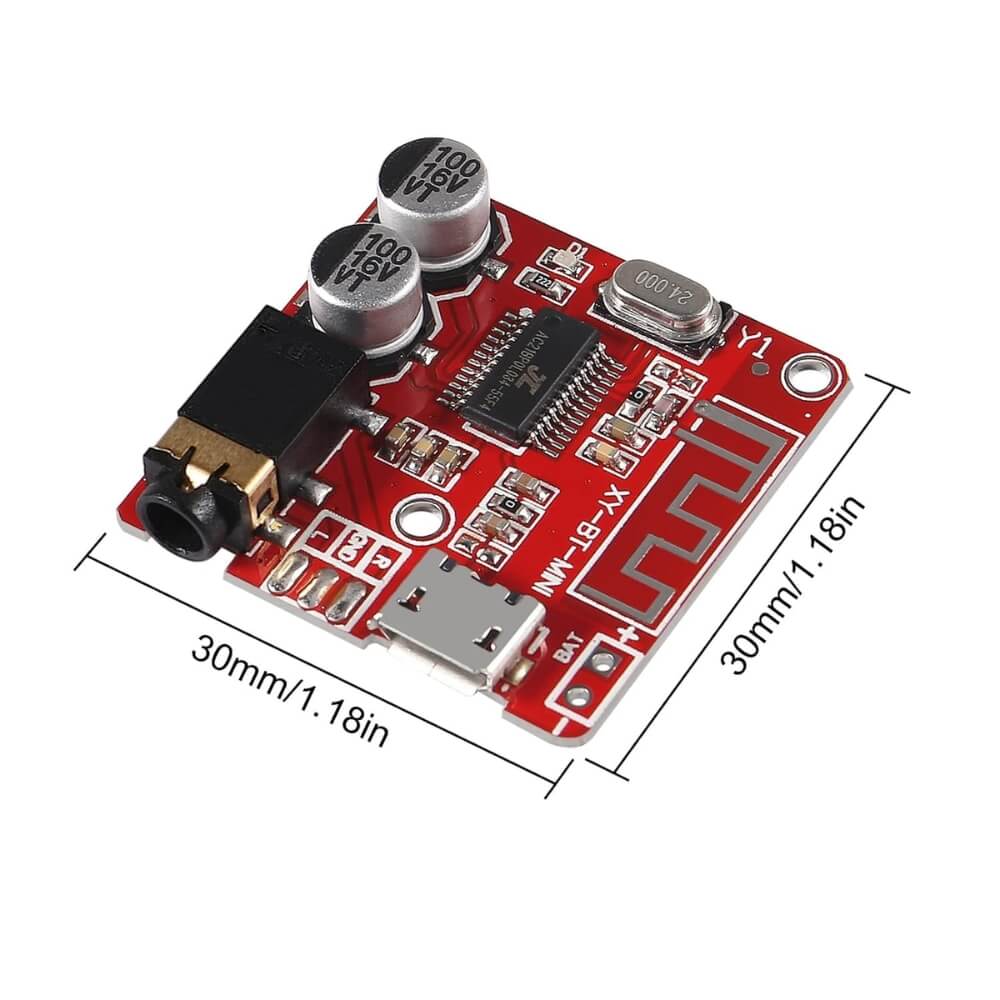

  • Compact 30x30mm Form Factor: Fits inside car dashboard stereo compartments and DIY speaker boxes.
In The Box
  • 1 x XY-BT-Mini Bluetooth 4.1 Audio Decoder Receiver Board
Shipping & Returns
  • Exchange Only
Warranty
  • 6 Months
